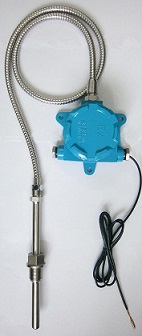

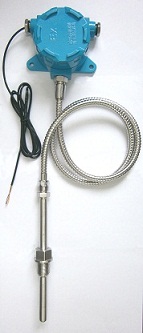

SBW wall mounted explosion-proof temperature transmitter
Product description:
SBW wall mounted explosion-proof temperature transmitter
1, SBW type explosion-proof wall temperature transmitter main characteristics:
temperature probe with Pt100 platinum resistance, high precision, good stability of
transducer in one set, compact structure, convenient installation, high precision, low power
current output type is suitable for long distance transmission, anti electromagnetic interference circuit design, to ensure safe and reliable in the transmitter the interference of the work environment, suitable for modern electromagnetic pollution using the
integral sealing performance good
temperature range and the size of the order can according to user requirements, flexible
products reasonable structure design, process connection interface flexibility, small size, light weight, installation position of any
shell protection material diversification, to adapt to a variety of media measuring standard pipe thread installation
2, SBW wall type explosion-proof temperature transmitter, the main technical indicators:
Temperature measuring range: -50 to 300 DEG C, can be customized according to customer requirements of
output signals: 4 ~ 20mA
load is less than 500 ohm
power supply: 24V DC
: 1W
= power basic error: 0.2% FS
Explosion proof meter
Connecting device: metal explosion-proof hose
Installation: wall mounting
Specification size: customized according to customer requirements
3 、 SBW wall hanging explosion-proof temperature transmitter product application:
Widely used in thermal engineering, power, food, pharmaceutical, petroleum, chemical and other process industries, as well as ovens, plastics, chemical fiber, refrigeration units and other large machinery temperature measurement.
